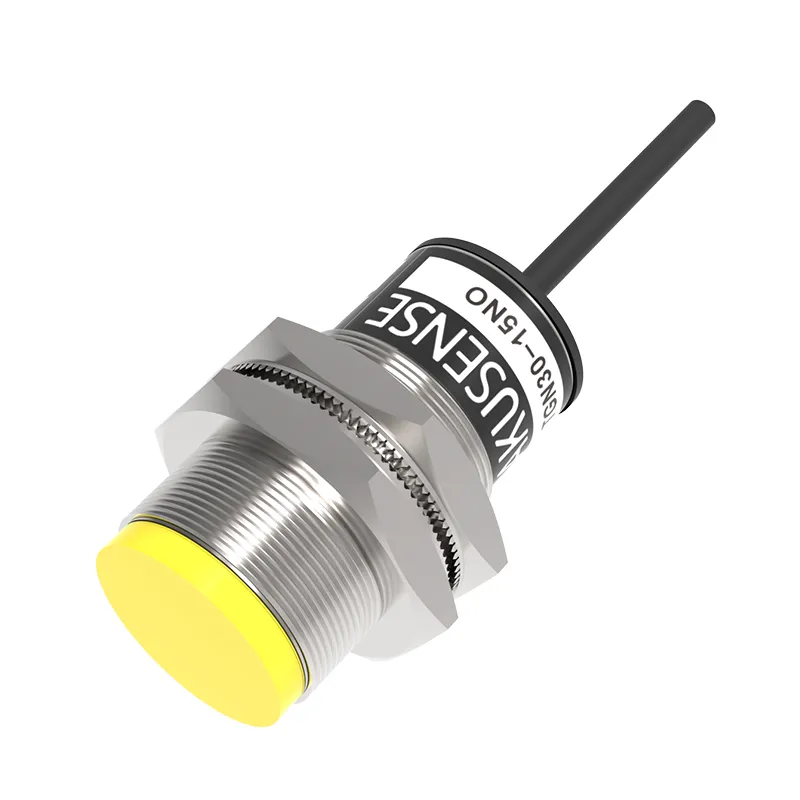

Temperature Resistance Type TGN30-15PO
| Ürün Kodu : | TGN30-15PO |
| Kategori : | Algılama sensörleri, Endüktif sensörler |
| Etiketler : | TGN30-15PO |
| Stok : | Stokta Var |
| Model | TGN30-15PO |
| Working principle | Inductive sensor |
| Housing | Cylindrical |
| Installation type | non-flush |
| Sensing distance | 15mm±10% |
| Thread size | M30 |
| Detected objects | Metal sensor |
| Indicator | Operating status: LED |
| Sensing range adjustment | None |
| Switching output | Normally open |
| Output Mode | PNP |
| External input | None |
| Switching frequency | 0.3 kHz |
| Repeatability | 5% |
| Hysteresis | 1 ~ 20% |
| Operating Voltage | 10~30V DC±10% |
| Current Consumption | ≤15mA |
| Residual Voltage | 2.5 V or less |
| Load Current | 100mA |
| Leakage Current | < 0.01 mA |
| Insulation Resistance | ≥50MΩ (500VDC) between power terminal and housing |
| Dielectric strength | 1000VAC (50/60Hz), 1 minute between the power terminal and housing |
| Vibration Resistance | 10 to 55Hz, amplitude 1.5mm, X/Y/Z axis, 2 hours each |
| Circuit Protection | Reverse polarity protection/surge protection |
| Operating temperature | -25~+120℃ |
| Operating humidity | 35~95%RH |
| Enclosure rating | IP67 |
| Connection type | 2m/3 wire cable |
| Dimension | M30x51.5mm |
| Material | Nickel-copper alloy |
| Weight | 0.12kg |
| Accessories | Nut M30x1.5 |
