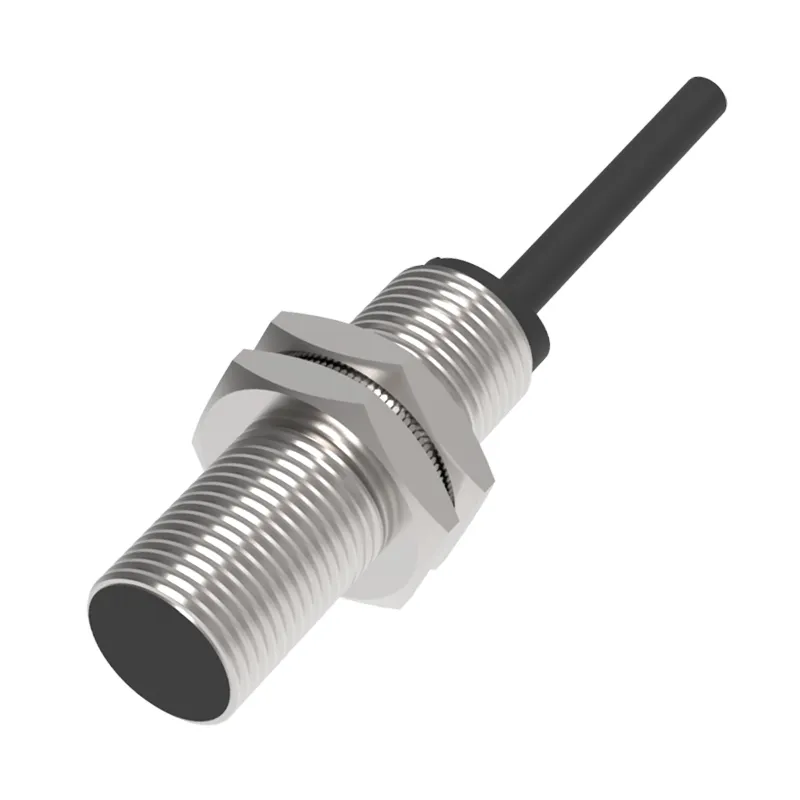

Temperature Resistance Type TGF12-02PO2

Ürün Kodu : TGF12-02PO2
Kategori : Algılama sensörleri, Endüktif sensörler
Etiketler : TGF12-02PO2
Stok : Stokta Var
Model TGF12-02PO2
Working principle Inductive sensor
Housing Cylindrical
Installation type Flush
Sensing distance 2.0mm±10%
Thread size M12
Sensing Surface Material PEEK
Detected objects Metal sensor
Indicator Operating status: LED
Sensing range adjustment None
Switching output Normally open
Output Mode PNP
External input None
Switching frequency 0.5 kHz / 220 ℃
Repeatability 3%
Hysteresis 3 ~ 15%
Operating Voltage 10~30V DC±10%
Current Consumption ≤25mA (24VDC)
Residual Voltage 1.8 V or less
Load Current 150mA
Leakage Current < 0.01 mA
Insulation Resistance ≥50MΩ (500VDC) between power terminal and housing
Dielectric strength 1000VAC (50/60Hz), 1 minute between the power terminal and housing
Vibration Resistance 10 to 55Hz, amplitude 1.5mm, X/Y/Z axis, 2 hours each
Circuit Protection Reverse polarity protection/surge protection
Operating temperature -25~+230℃
Operating humidity 35~85%
Enclosure rating IP66
Connection type 3m Teflon armored shielded wire /S12 connector
Dimension M12x54.0mm
Material Stainless Steel +PEEK
Weight 0.05kg
Accessories Nut M12x1.0
