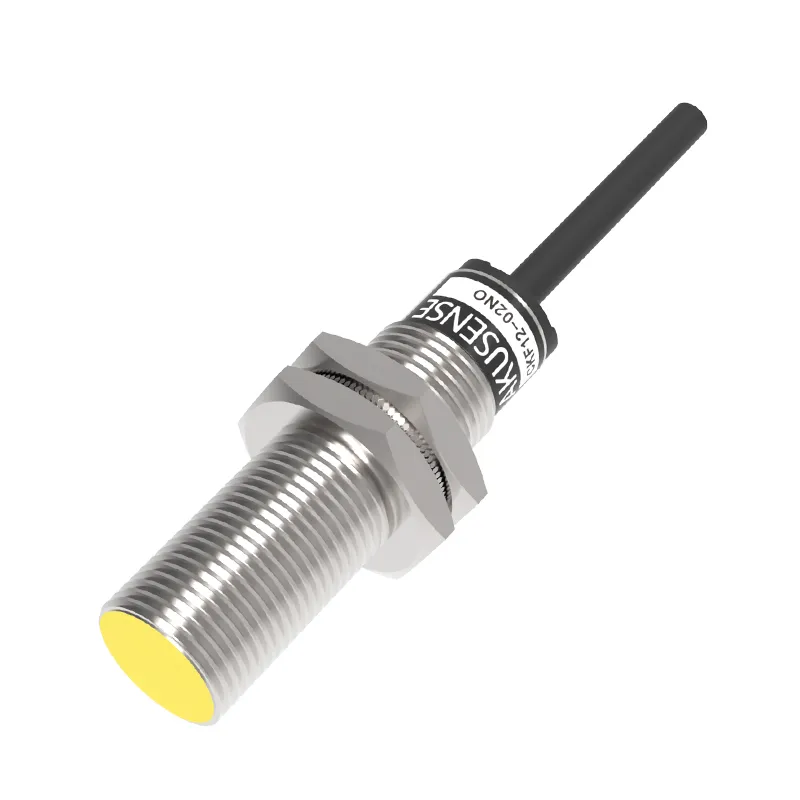

Temperature Resistance Type TGF12-02PC

Ürün Kodu : TGF12-02PC
Kategori : Algılama sensörleri, Endüktif sensörler
Etiketler : TGF12-02PC
Stok : Stokta Var
Model TGF12-02PC
Working principle Inductive sensor
Housing Cylindrical
Installation type Flush
Sensing distance 2.0mm±10%
Thread size M12
Detected objects Metal sensor
Indicator Operating status: LED
Sensing range adjustment None
Switching output Normally closed
Output Mode PNP
External input None
Switching frequency 1.5 kHz
Repeatability 5%
Hysteresis 1 ~ 20%
Operating Voltage 10~30V DC±10%
Current Consumption ≤15mA
Residual Voltage 2.5 V or less
Load Current 100mA
Leakage Current < 0.01 mA
Insulation Resistance ≥50MΩ (500VDC) between power terminal and housing
Dielectric strength 1000VAC (50/60Hz), 1 minute between the power terminal and housing
Vibration Resistance 10 to 55Hz, amplitude 1.5mm, X/Y/Z axis, 2 hours each
Circuit Protection Reverse polarity protection/surge protection
Operating temperature -25~+120℃
Operating humidity 35~95%RH
Enclosure rating IP67
Connection type 2m/3 wire cable
Dimension M12x51.0mm
Material Nickel-copper alloy
Weight 0.05kg
Accessories Nut M12x1.0
