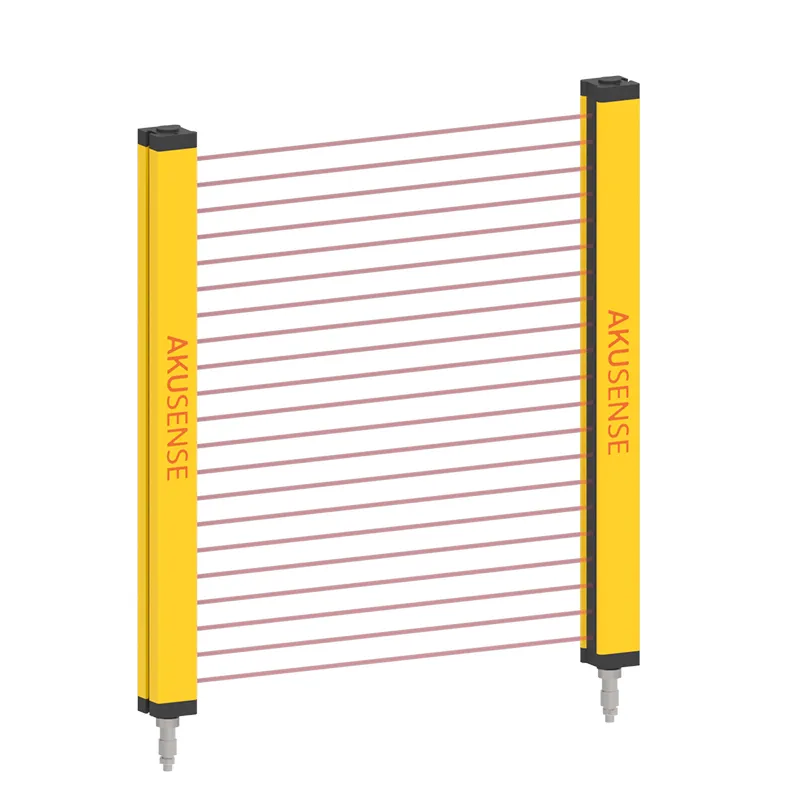

Standard Type BML10-T3203NC
| Ürün Kodu : | BML10-T3203NC |
| Kategori : | Algılama sensörleri, Işık perdeleri |
| Etiketler : | BML10-T3203NC |
| Stok : | Stokta Var |
| Model | BML10-T3203NC |
| Working principle | Photoelectric sensor |
| Housing | Array |
| Optical working principle | Thru-beam |
| Light Source | Infrared light (modulated) |
| Beam Pitch | 10mm |
| Number of beams | 32 beams |
| Protection Height | 366mm |
| Protection Distance | 0.3~3m |
| Mini. detectable object | Opaque body above φ14mm |
| Output Mode | NPN |
| Synchronization Type | Line Synchronization |
| Response Time | ≤15ms |
| Operating Voltage | 24VDC±10% |
| Current Consumption | ≤200mA |
| Power Consumption | 4~6W |
| Residual Voltage | ≤1.5V (75mA) |
| Insulation Resistance | ≥50MΩ (500VDC) between power terminal and housing |
| Dielectric strength | 1000VAC (50/60Hz), 1 minute between the power terminal and housing |
| ProtectiOn Circuit | Reverse polarity protection/short circuit protection/surge protection |
| Operating temperature | -10~55℃(without freezing) |
| Storage Temperature | -15~60℃(not freezing) |
| Operating humidity | 35~85%RH (no condensation) |
| Storage Humidity | 35~95%RH (no condensation) |
| Ambient Illumination | Incandescent lamp ≤3000Lux; LED lamp ≤3000Lux; Sunlight ≤10000Lux |
| Vibration Resistance | 10 to 150Hz, double amplitude 1.5mm, X/Y/Z axis, 2 hours each |
| Protection class | IP65 |
| Connection type | Cable |
| Dimensions | 106~1305x35x51mm |
| Material | Aluminum |
| Weight | 0.53~6.53kg |
| Accessories | Mount bracket, mounting screws, M12/5 pin plug cable, M12/4 pin plug cable |
