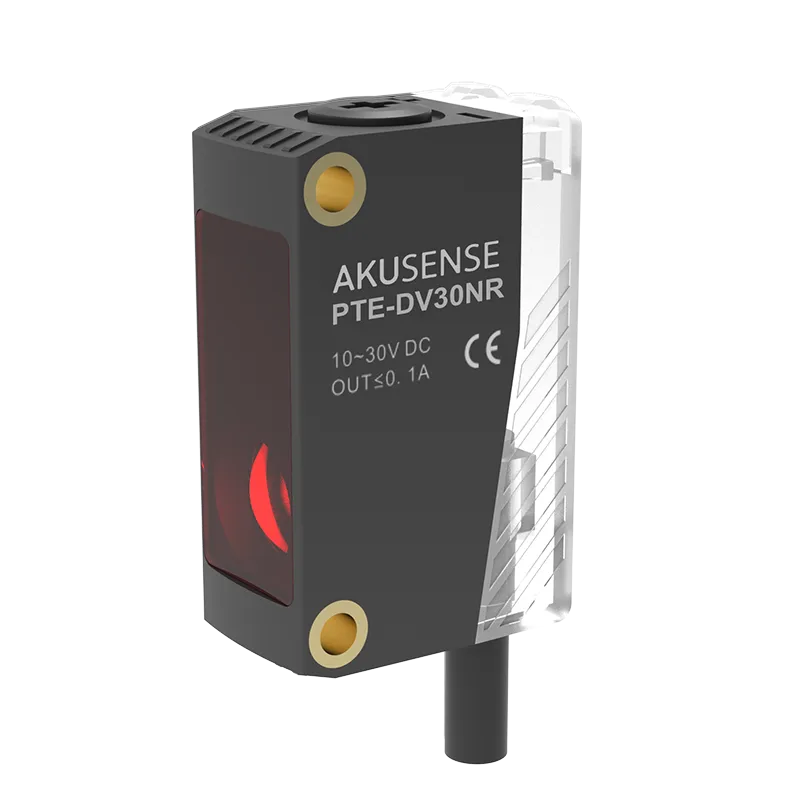

Square Type PTE-DV30NR
| Ürün Kodu : | PTE-DV30NR |
| Kategori : | Algılama sensörleri, Fotosel sensörler |
| Etiketler : | PTE-DV30NR |
| Stok : | Stokta Var |
| Model | PTE-DV30NR |
| Working principle | Photoelectric sensor |
| Housing style | Square |
| Optical working principle | Diffuse reflection |
| Detection Range | 5 to 300mm(white matte paper) |
| Spot Size | At 50cm: 1cm x 1cm |
| Detected Object | ≤5mm |
| Light Source | Infrared light LED 940nm |
| Indicator light | Working indicator light: green; Action light: red |
| Sensitivity Adjustment | 6 turns potentiometer |
| Switch Mode | L.on (light entry action) /D.on (light blocking action) can be switched |
| Output Mode | NPN open collector |
| Response Time | ≤2.5ms |
| Switching frequency | 200Hz |
| Repeatability | ≤5%SN |
| Hysteresis | ＜15%Sr |
| Operating Voltage | 10~30V DC |
| Current consumed | ≤20mA |
| Residual Voltage | < 1.5V |
| Load Current | 100mA |
| Insulation Resistance | 20 m Ω |
| Withstand Voltage | ≤0.1mA (1000V AC) |
| ProtectiOn Circuit | Reverse polarity protection/surge protection/short circuit protection |
| Operating temperature | -25~55℃(without freezing) |
| Storage Temperature | -30~+70℃ |
| Operating humidity | 35~85%RH (no condensation) |
| Storage Humidity | 35~95%RH |
| Ambient light | Incandescent lamp ≤3000 Lux; Sunlight exposure ≤ 10,000 Lux |
| Vibration Resistance | 10~55Hz sweep frequency, 1.5mm amplitude, X, Y, Z three directions for 2 hours each |
| Protection rating | IP67 |
| Maximum Tightening Torque | 0.1 Nm or less |
| Connection Method | 2M/ 4-core cable 4mm diameter |
| Dimensions | 20.0 x31.0 x11.0 mm |
| Material | PBT+ fiberglass |
| Weight | 0.05 kg |
| Accessories | Screwdriver |
