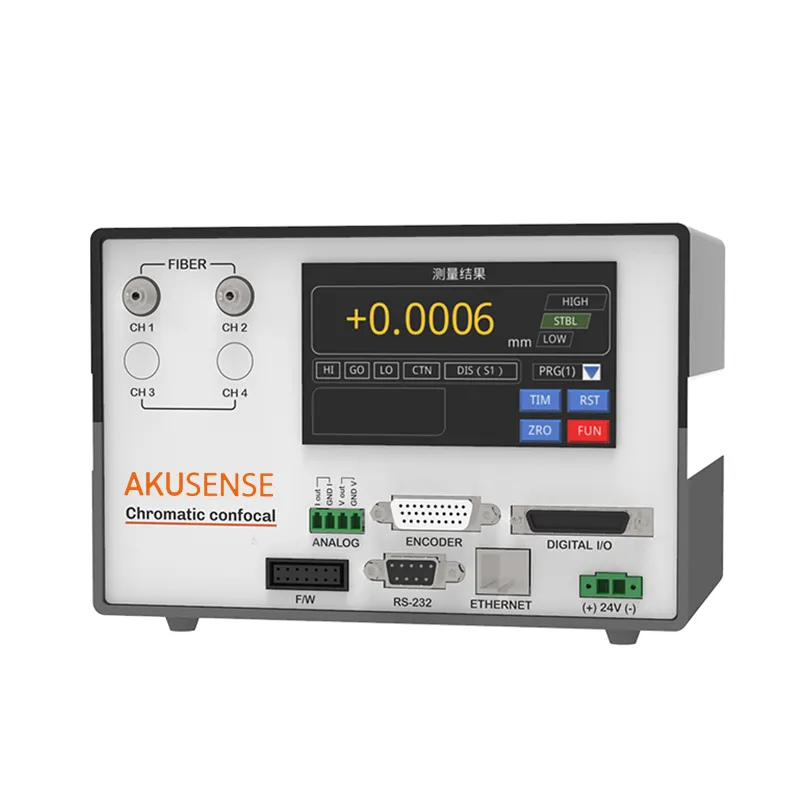

Color confocal controller ADV-12CK2
| Ürün Kodu : | ADV-12CK2 |
| Kategori : | Mesafe sensörleri, Konfokal mesafe sensörleri |
| Etiketler : | ADV-12CK2 |
| Stok : | Stokta Var |
| Model | ADV-12CK2 |
| Housing | Retangular |
| Enclosure rating | IP20 |
| Dimension | 185x122x127mm |
| Weight | 1.38 kg |
| Light Source | White LED |
| Operating Voltage | 24V DC |
| Sampling Frequency | 2K HZ(Max) |
| I/O Function | Pulse input, output, encoder triggers input |
| Number of encoder axes | 3-axis, incremental (A/B/Z phase) |
| Externalcommunication interface | RS-232:115200 bps(max.) Ethernet:100BASE-TX/10BASE-T |
| Operating temperature | 5~40℃ |
| Operating humidity | 35~80% |
| Ambient Illumination | <10000lx |
| Fiber optic extension cable | ACC-OF-S(standard); Outer Armor: ACC-OF-M(optional) |
| Length of fiber optic extension cable | 2/5/10m, standard 10m |
| Weight of fiber optic extension cable | ACC-OF-S: 23/40/69g;ACC-0F-M:108/218/396g |
| Minimum bend radius *5 | 50mm |
| Connectable channels | 2 |
