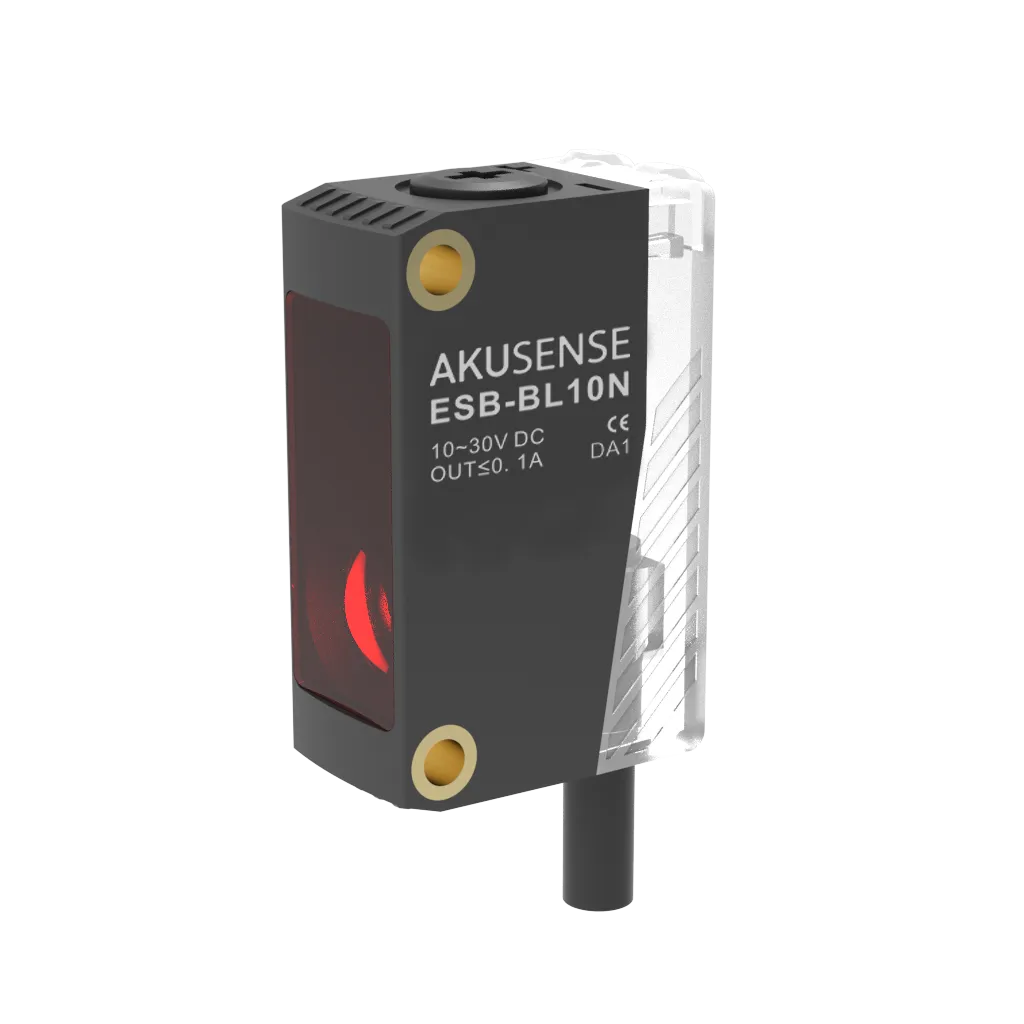

BGS Type (ESB Series) ESB-BL10N
| Ürün Kodu : | ESB-BL10N |
| Kategori : | Algılama sensörleri, Fotosel sensörler |
| Etiketler : | ESB-BL10N |
| Stok : | Stokta Var |
| Model | ESB-BL10N |
| Working principle | Photoelectric sensor |
| Housing style | Square |
| Optical working principle | Background suppression diffuse reflection |
| Detection Range | 1~100mm |
| Spot Size | 65 x0. 5 mm / 100 mm |
| Detected Object | 5mm(at 50mm) |
| Light Source | Red Light LED |
| Indicator light | Output indicator: orange; Light source indicator: green |
| Sensitivity Adjustment | 4-turn potentiometer |
| Switch Mode | L.on (light entry action) /D.on (light blocking action) can be switched |
| Output Mode | NPN open collector |
| Response Time | ≤0.3ms |
| Switching frequency | ≤2000Hz |
| Repeatability | ≤5% |
| Operating Voltage | 10~30V DC |
| Current consumed | ≤20mA |
| Residual Voltage | < 1V |
| Load Current | 100mA |
| Insulation Resistance | ≥20MΩ(250V DC) |
| Withstand Voltage | ≤0.1mA (1000V AC) |
| ProtectiOn Circuit | Reverse polarity protection/surge protection/short circuit protection/interference light protection |
| Operating temperature | -30℃~+70℃,without freezing |
| Storage Temperature | -30℃~+70℃(without freezing) |
| Operating humidity | 35~85%RH (no condensation) |
| Storage Humidity | 35~95%RH |
| Ambient light | Incandescent lamp ≤5000 Lux; Sunlight exposure ≤20000 Lux; LED lights ≤2000 Lux |
| Vibration Resistance | 10~50Hz, 1.5mm amplitude, 2 hours in each of the X, Y and Z directions |
| Protection rating | IP66 |
| Maximum Tightening Torque | 0.5 Nm or less |
| Connection Method | 2M/ 4-core cable |
| Dimensions | 11.0 x20.0 x31.0 mm |
| Material | Case: with glass fiber ABS, lens: PMMA |
| Weight | 0.044 kg |
| Accessories | Screwdriver |
